What to Do:

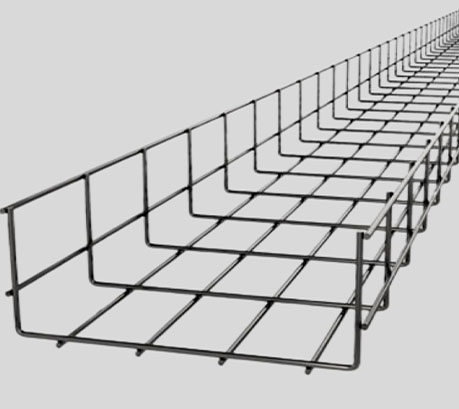

Wire mesh cable trays can be used to provide the flexibility, support as well as cooling capabilities to the cables.

One of the main benefits of a wire mesh tray is that it’s cheaper and quicker to install.

The flexibility provided by being able to create fittings on site can be invaluable especially when you consider just how quickly these bends and fittings can be made.

Its design allows better air circulation and heat dissipation thus reducing numerous potential problems caused by overheating cables.

Wire mesh cable trays are a lot lighter than regular perforated sheet cable trays and hence cost effective for similar load ratings.

What Not To Do:

One should never overload cable trays, also only that much cable trays should be used which is required otherwise it will be bulky and harder to move.

One must plan cable tray installation as per plan of Cabling pathways ,Rack density

Type/count/diameter of cables, End equipment cable entry,Choose the coating material wisely i.e. Electroplated zinc or powder coating and Room height.

If these factors are not considered before installation problems like short circuits, voltage variances, signal disturbances and complete system resets can take place which could prove to be a very costly affair.

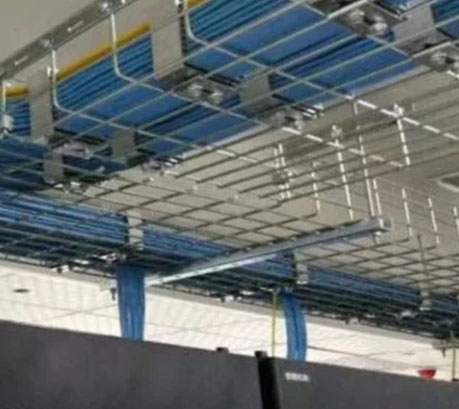

One can’t afford a data centre which is outdated by any sort as it acts as the beacon of knowledge for the business; however there are some simple steps which can be taken to increase the efficiency of network centers.

Technical Specifications:

Standard specifications of trays with a width of 600mm and depth of 100mm can take loads up to 300 Kg per meter.

It can be increased with further customization.

The wire diameter is 4mm(customizable). Mesh Size – 100mm * 50mm (customizable)

Our Cable Mesh has been tested in accordance with NEMA standards and Indian Standards.

Available in Pre galvanized , Post Hot Dip Galvanized , Powder Coated and Stainless Steel

Applications:

Wire mesh cable trays are a lot lighter than regular perforated sheet cable trays and hence cost effective for similar load ratings.

It finds its applications in power plants, airports, hospitals, substations, and housing projects etc.
